Case 3
This young patient is acutely short of breath.
Further Explanation:

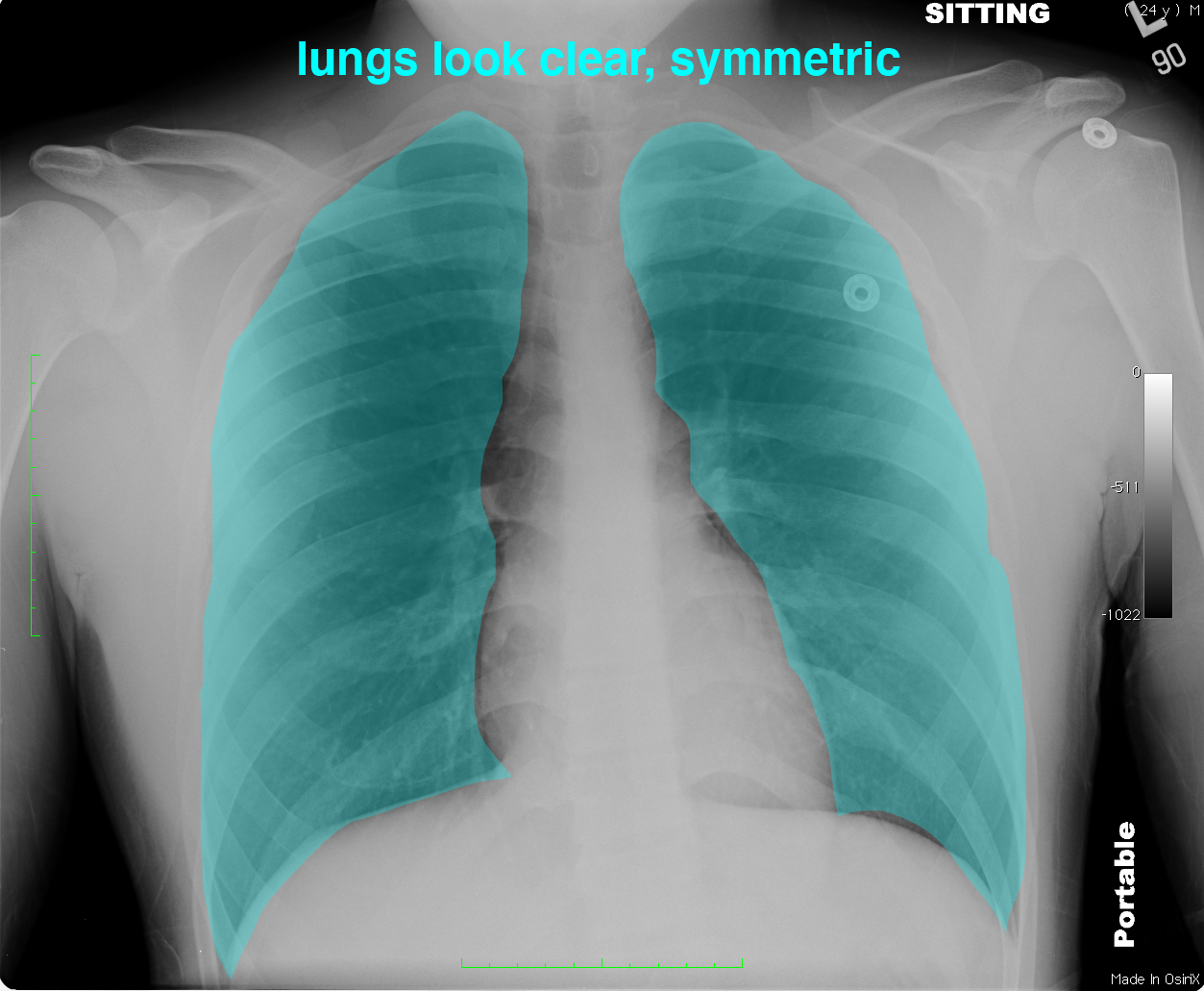

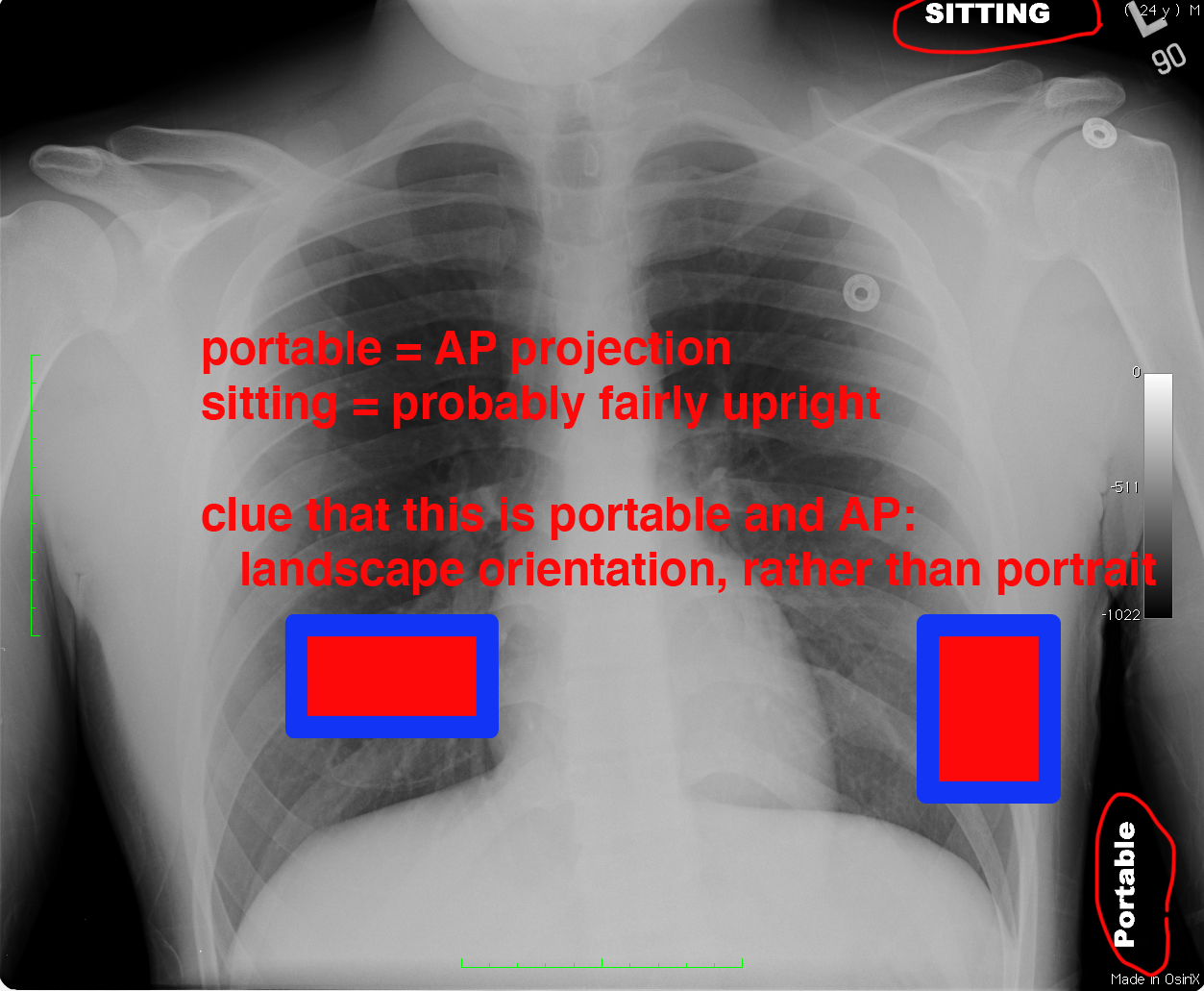

What are technical parameters for this radiograph (projection, patient position) and how do the lungs look?
Case 3
Case 3, continued
Further Explanation:

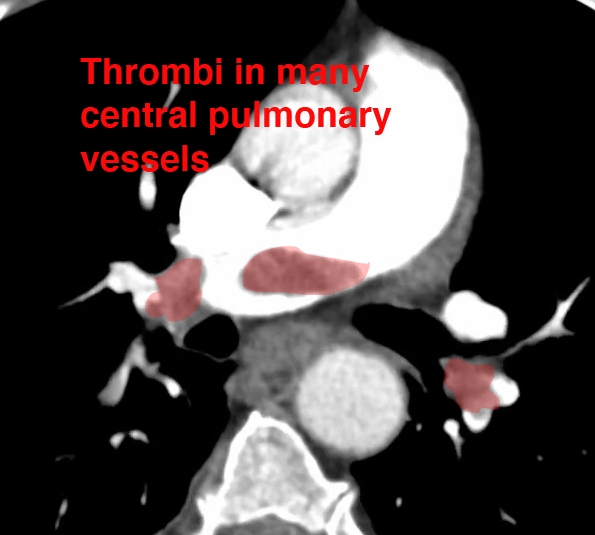

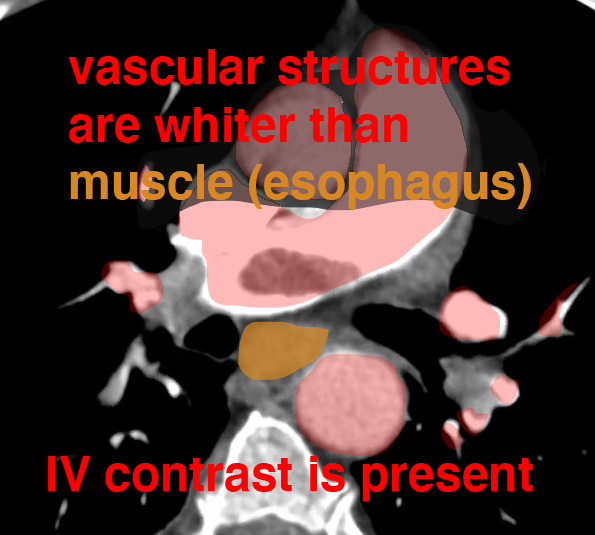

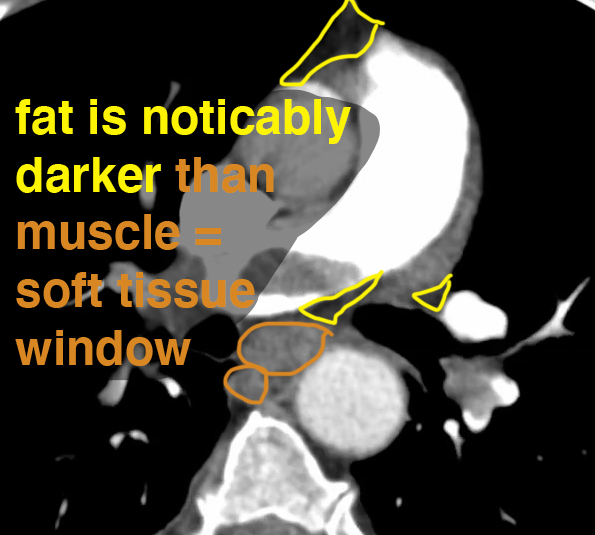

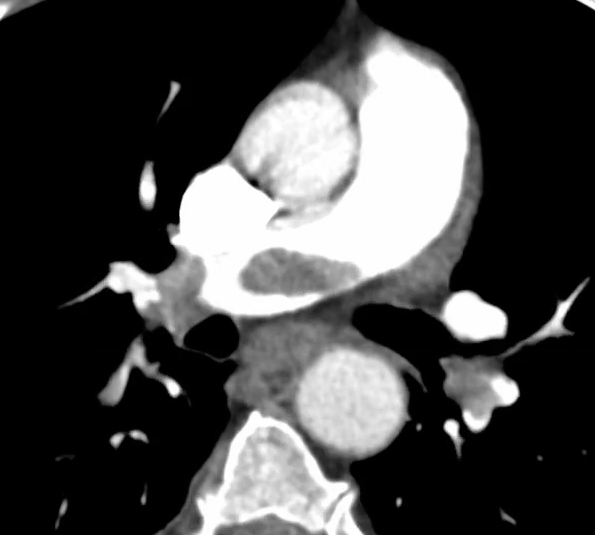

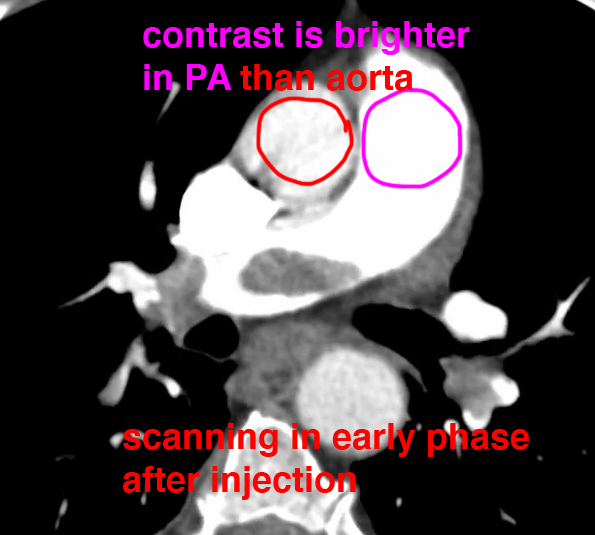

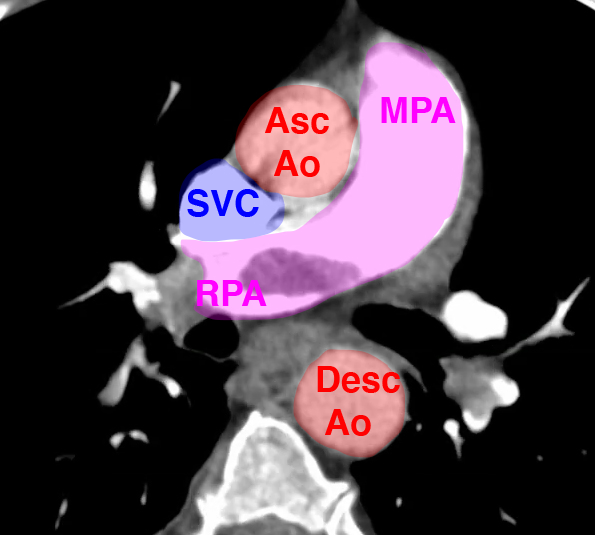

This is a closeup view from the patient's CT scan. What is the CT window? How can you tell that IV contrast was given? Was this scan done early after contrast injection or late? Can you identify the pulmonary arteries and aorta on this image? What is abnormal?
Case 3
Case 3, continued
Further Explanation:

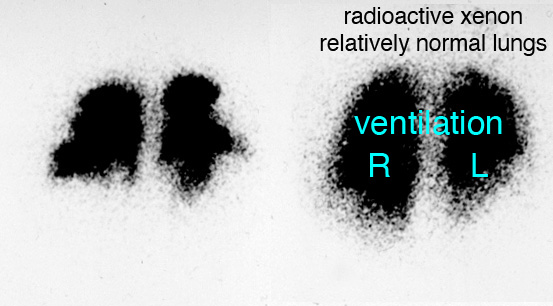

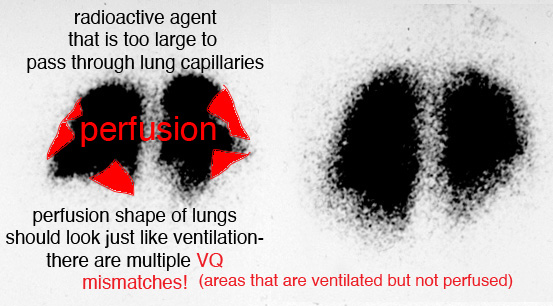

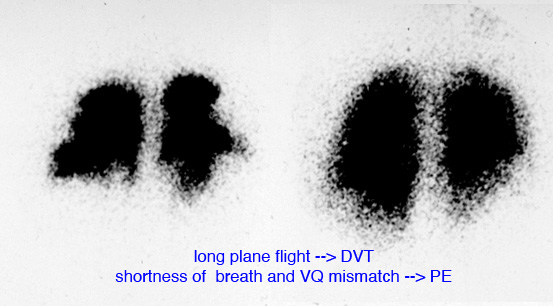

This study was done on a different patient with shortness of breath after a long plane flight. What type of imaging study is this? Is it normal? What diagnosis comes to mind, given the clinical scenario?
Case 3
Case 3, continued
Further Explanation:

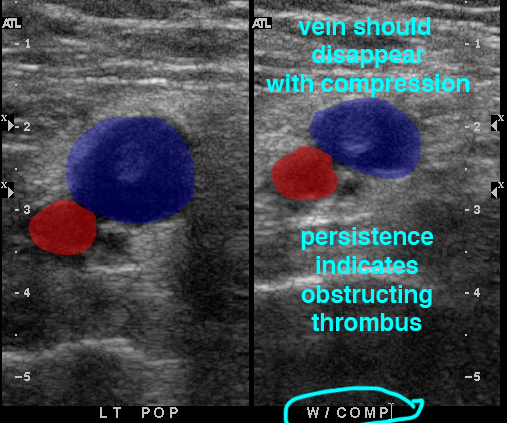

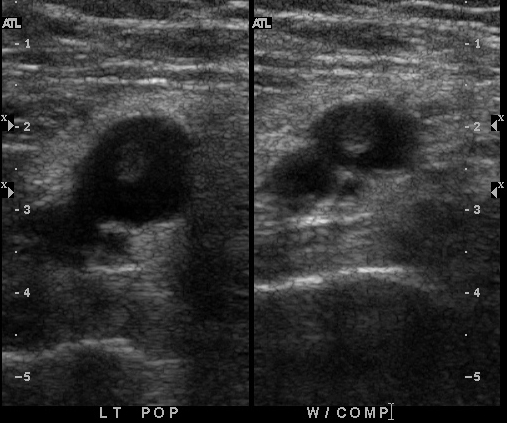

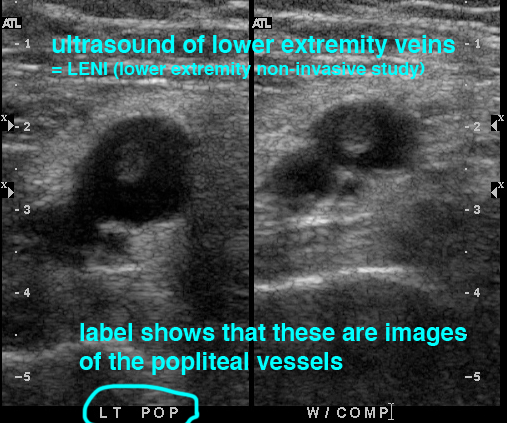

This is another study that was done on the patient after the plane flight, because his left leg was swollen. What type of exam is this? Is it normal?
